BARRE
Hydraulic CETOP5 Valve Spring Centered 3 Position Double Acting Solenoid Directional Control Valve
- Part Number:
- 4WE10E3X/CG24N9K4
Description
Our WE series of Cetop 5 Range of double solenoid directional valves are electro-hydraulically operated, they are avalible in a wide range of spool configuration and voltages with Din plug, to suit a wide range of applications.
The WE series has rated rated flow capacity of 160 litres per minute and a maximum operating pressure of 315 bar, suitable for operation with hydraulic oil between -20 to + 70 degrees celsius.
The Valves are available from stock in 24V DC 100V AC & 220V AC Volatges.

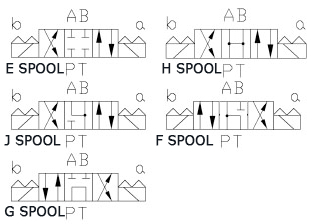

VALVE CONFIGURATION
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
If you Require any more information, Please contact our sales office by email or Telephone so we can assist you.
