HYDRAULIC CYLINDERS WITH PLAIN ENDS
- Part Number:
- FC0 SERIES
Description
FC0 HYDRAULIC CYLINDERS
DOUBLE / SINGLE* ACTING CYLINDER (* = WITH USE OF BREATHER)
MAX PRESSURE = 210 BAR (WORKING) / 250 BAR (MAXIMUM)
MAX SPEED = 0.5 M/S
OPERATING TEMPERATURE (°C) = +80°C / -25°C
TUBE MATERIAL = STEEL - ST52.3 - DIN2393 - ISO H9
ROD MATERIAL = STEEL - UNI C45 (SAE 1045) - 25 MICRON (±5) - EN8 GRADE
|

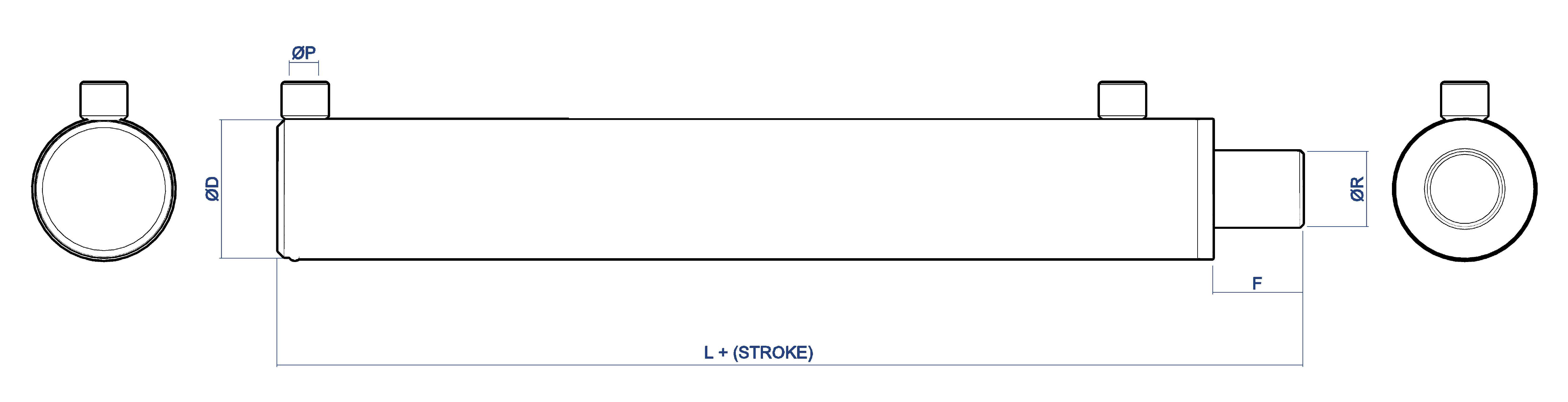

ORDER |
BORE |
D |
R |
L |
+STROKE |
P |
F |
| FC03220(STROKE) | 32 | 42 | 20 | 131 |
CUSTOMER
REQUIREMENT |
1/4" | 25 |
| FC04020(STROKE) | 40 | 50 | 126 | ||||
| FC04025(STROKE) | 25 | ||||||
| FC05025(STROKE) | 50 | 60 | 141 | 3/8" | |||
| FC05030(STROKE) | 30 | 153 | |||||
| FC06030(STROKE) | 60 | 70 | 157 | ||||
| FC06035(STROKE) | 35 | ||||||
| FC06040(STROKE) | 40 | ||||||
| FC06340(STROKE) | 63 | 73 | 155 | ||||
| FC07035(STROKE) | 70 | 80 | 35 | 152 | |||
| FC07040(STROKE) | 40 | 162 | |||||
| FC08040(STROKE) | 80 | 90 | 165 | 1/2" | |||
| FC08050(STROKE) | 50 | ||||||
| FC09050(STROKE) | 90 | 105 | |||||
| FC01050(STROKE) | 100 | 115 | |||||
| FC01060(STROKE) | 60 |
